6.4 headgaskets and high pressure fuel pump how to

[blacksnapon]

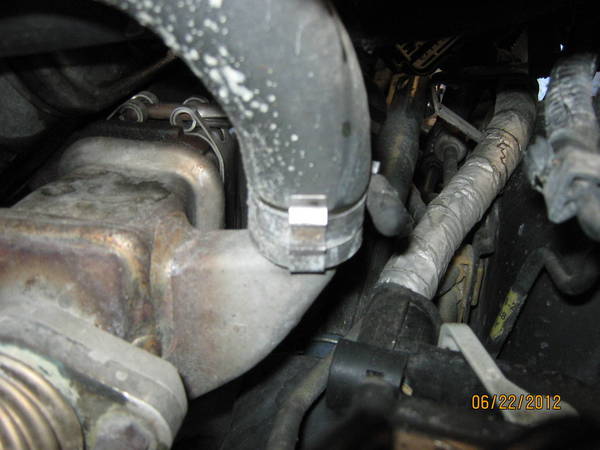

egr cooler hose clamp



[blacksnapon]

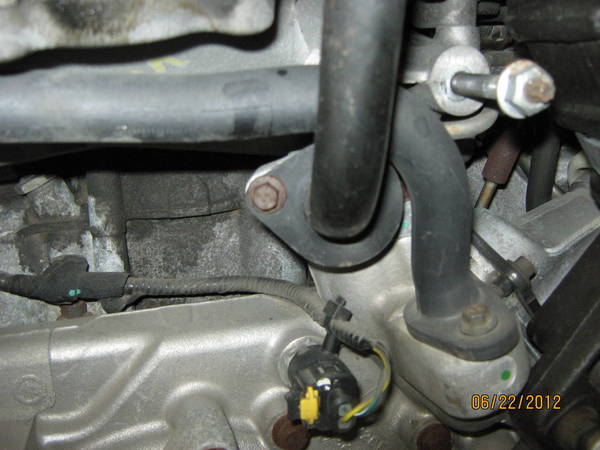

nut for egr cooler pipe



[blacksnapon]

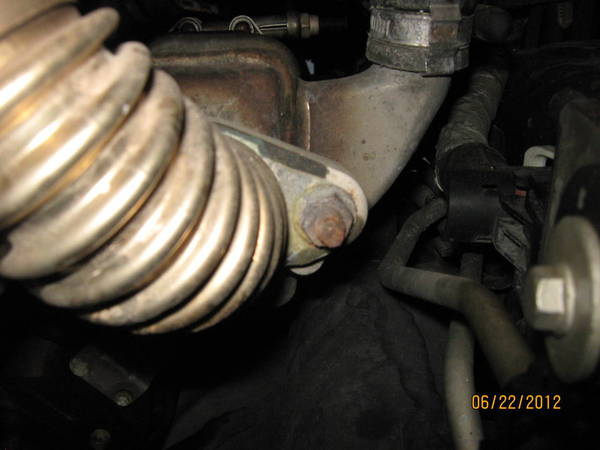

2 nuts egr cooler



[blacksnapon]

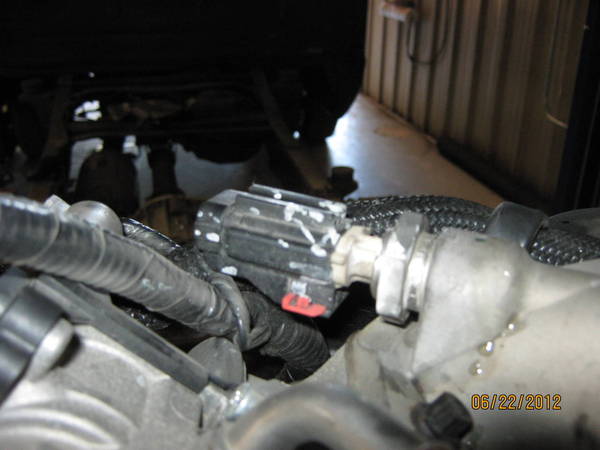

egr temp connector



[blacksnapon]

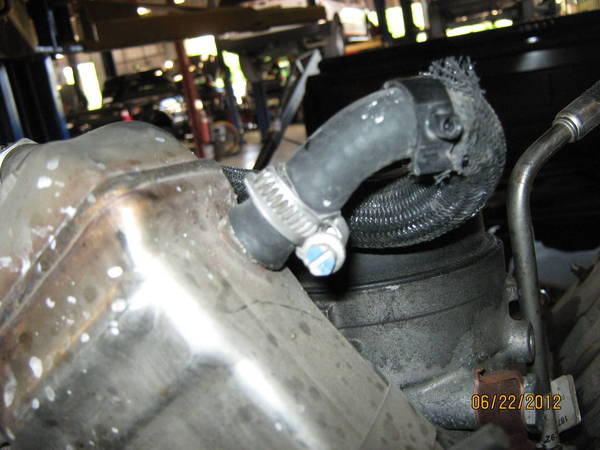

egr cooler hose



[blacksnapon]

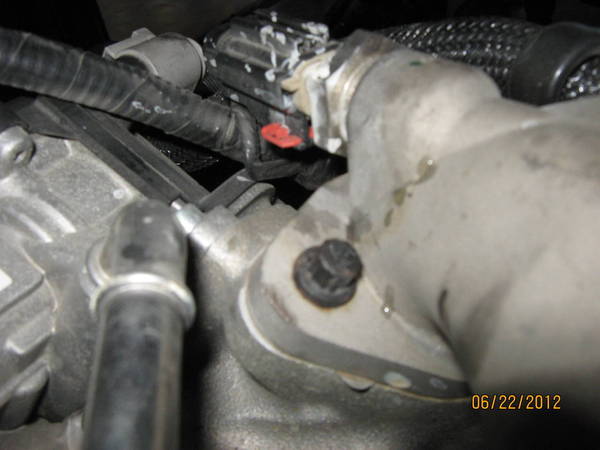

1 bolt 1 nut egr cooler (top)



[blacksnapon]

5 bolts (3 shown) remove egr cooler



[blacksnapon]

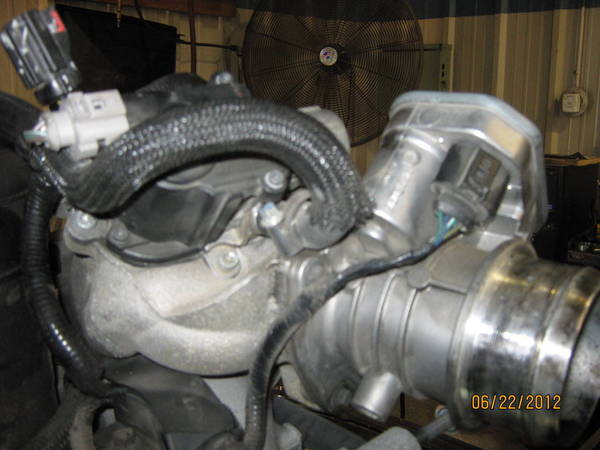

connectors, egr and throttle plate



[blacksnapon]

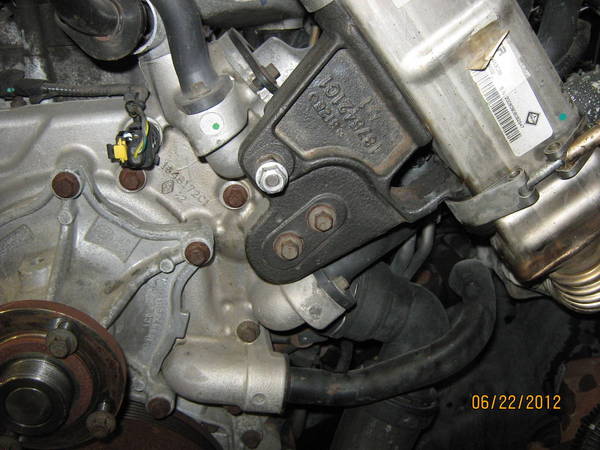

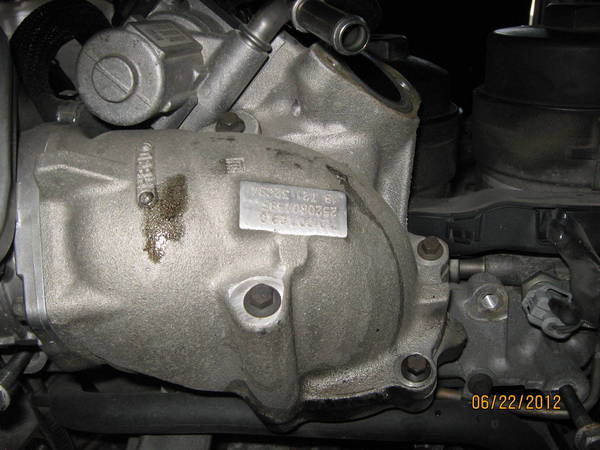

4 bolts, remove "elbow"



[blacksnapon]

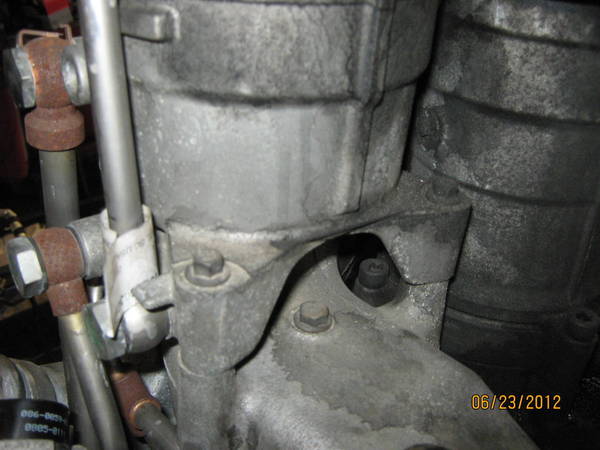

remove bolts for oil bypass



[blacksnapon]

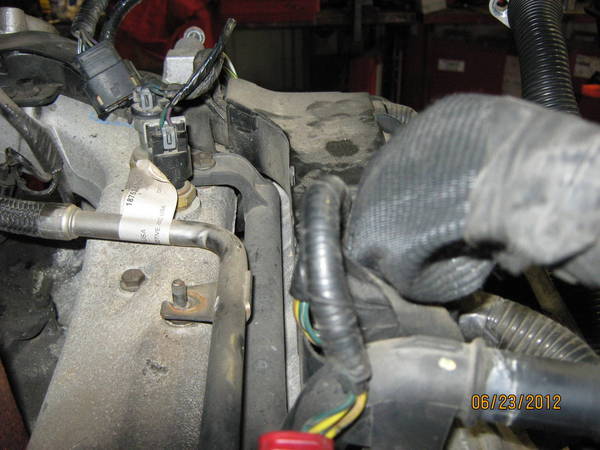

map, iat and fuel distribution connectors



[blacksnapon]

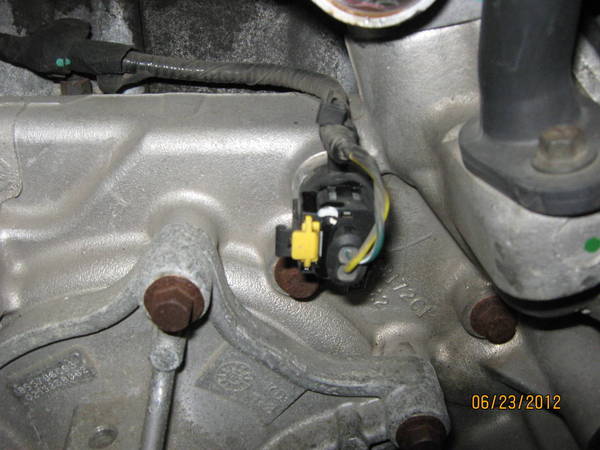

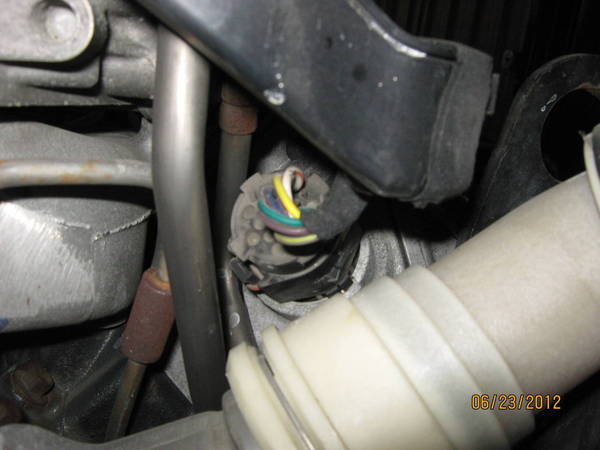

ect connector



[blacksnapon]

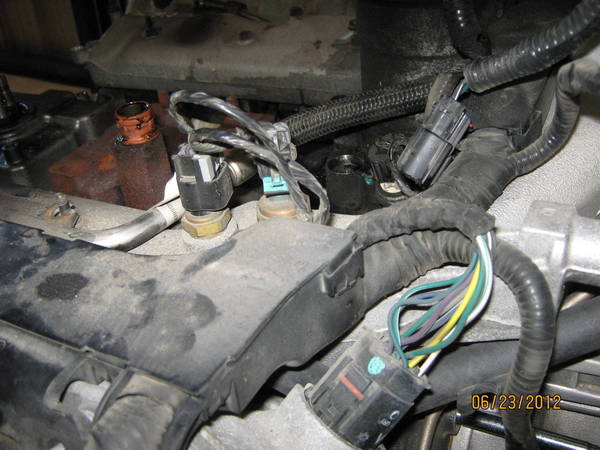

eot, oil pressure sensor connectors



[blacksnapon]

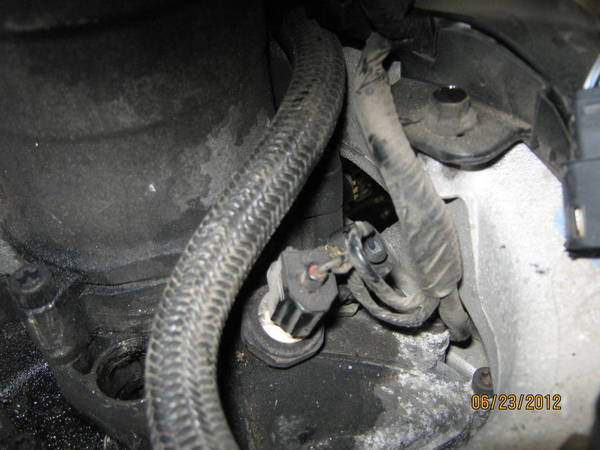

fuel temp sensor



[blacksnapon]

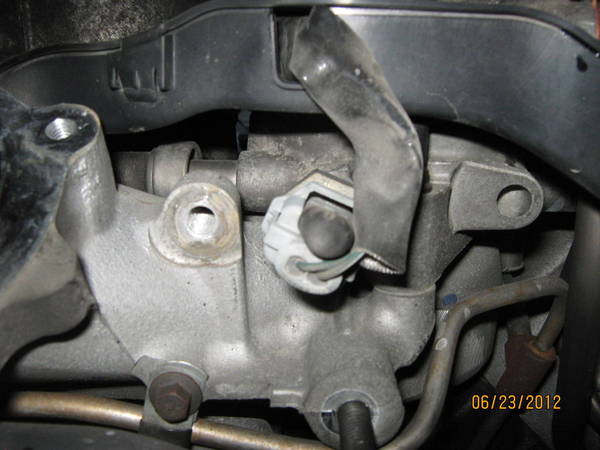

fuel distribution connector driver side



[blacksnapon]

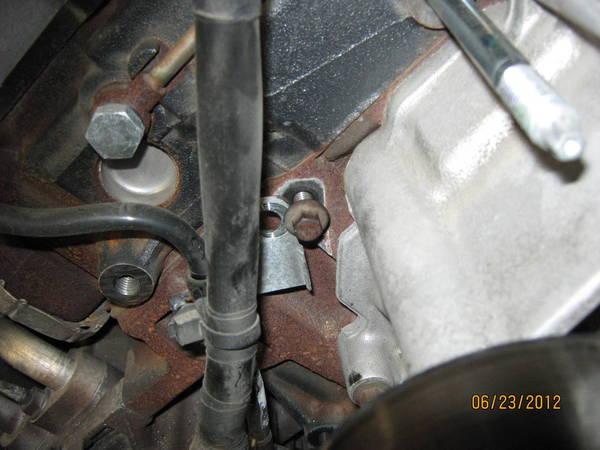

bolts for heater hose tube



[blacksnapon]

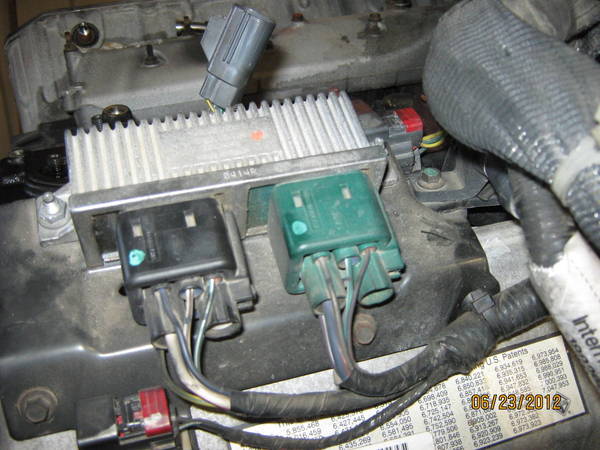

glow plug connectors



[blacksnapon]

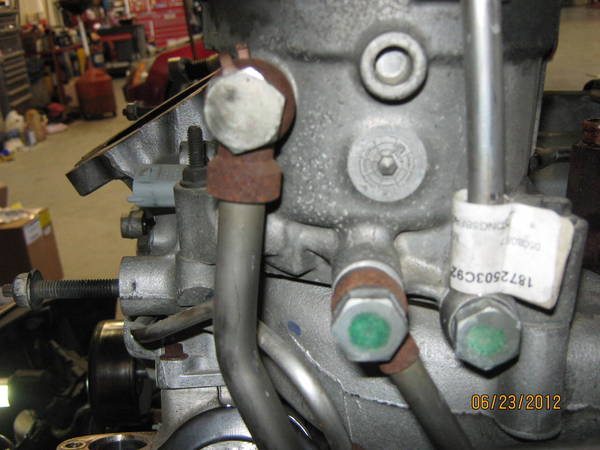

banjo bolts on fuel module



[blacksnapon]

remove bolts on fuel module then remove module



[blacksnapon]

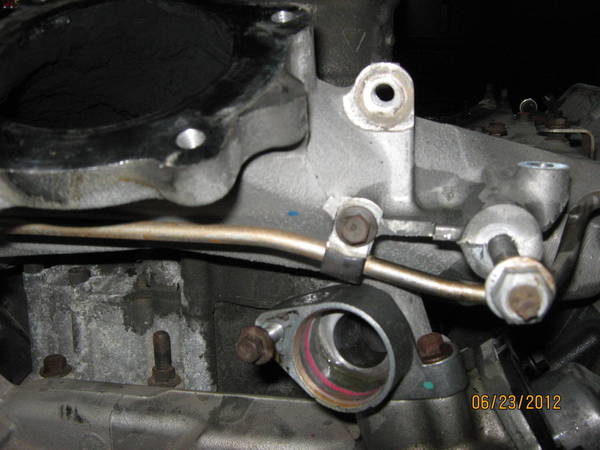

2 bolts on pass side fuel line
