BBK CAI Install on 95 Mustang GT

slmann

Charter Member
13,472
232
Festus, Mo.

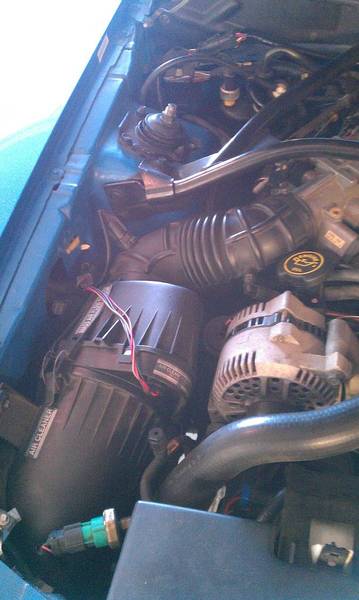

Before pic of stock air intake:

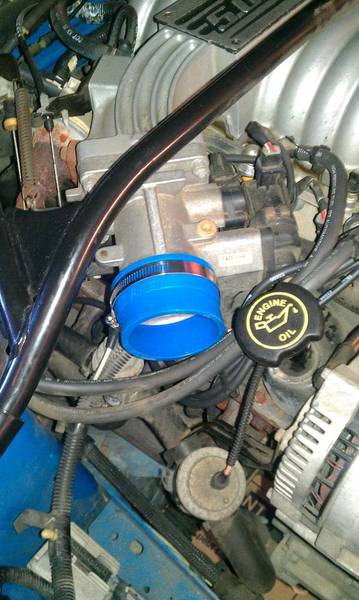

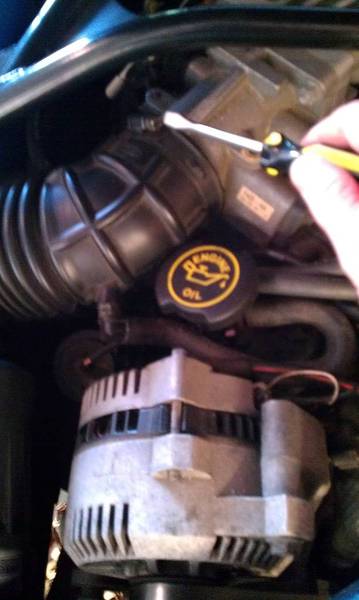

Unhook the airtube from the throttle body:

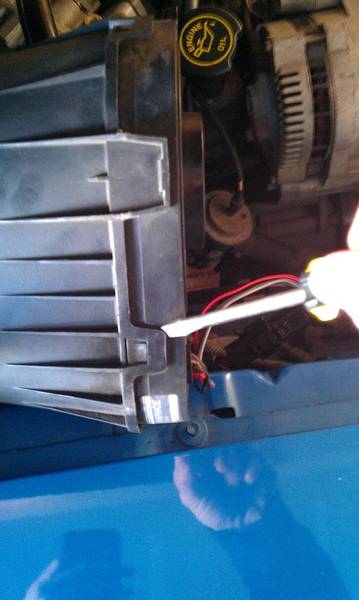

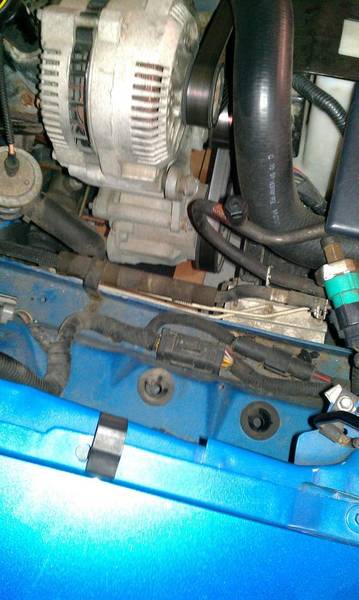

Unhook the airbox from the side of engine bay:

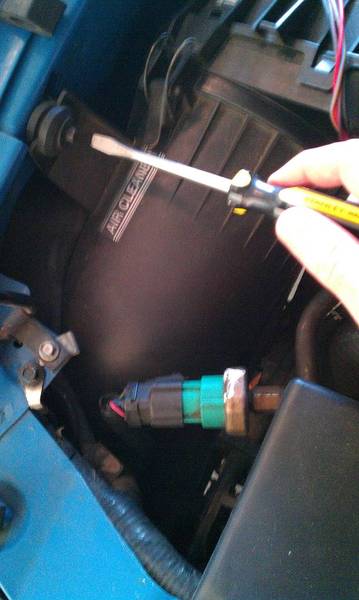

Unhook all the electrical and hoses:



Pull the whole assembly out and you have this:

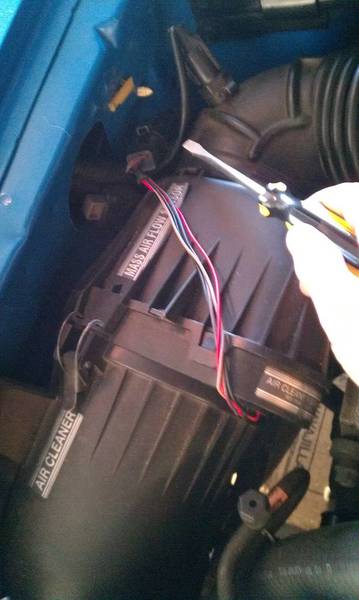

You have to take apart the airbox to get the mass airflow out. Couple tabs that need to be undone:

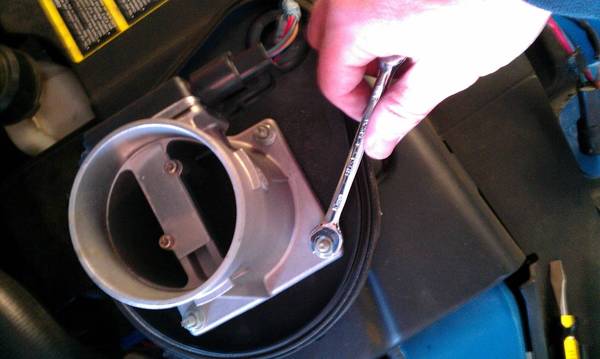

Remove the mass airflow from the stock box:

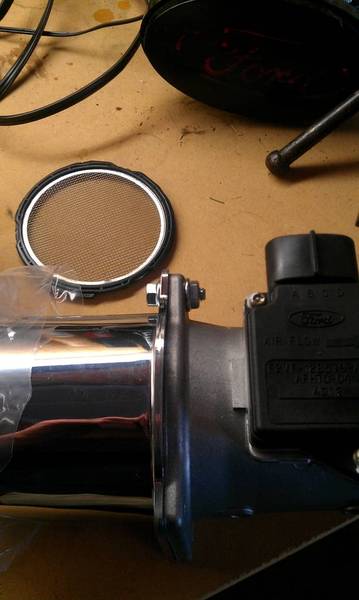

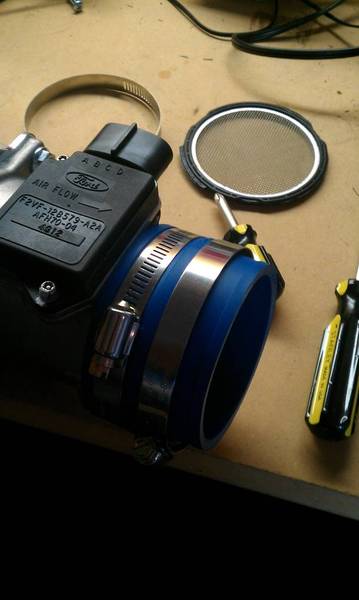

Attach the mass air to the BBK tube:

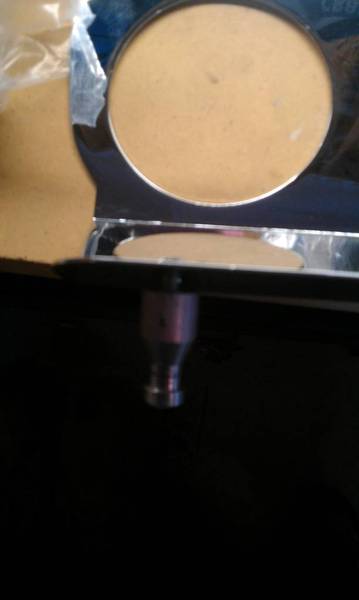

Attache the studs into the filter mounting plate:



Push the studs of the mounting plate into the stock rubber grommets:

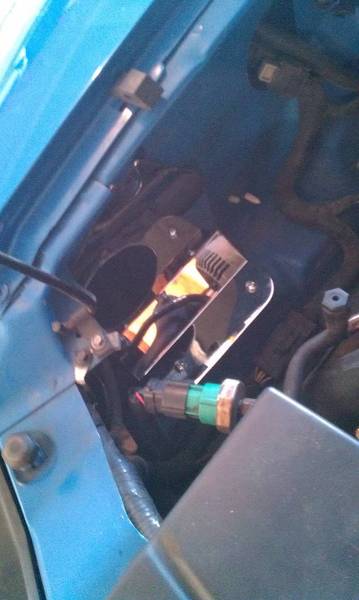

Using the stock bolt attach the top of the mounting plate to the side of the engine bay:



Attach rubber hose connectors to the throttle body and mass air:

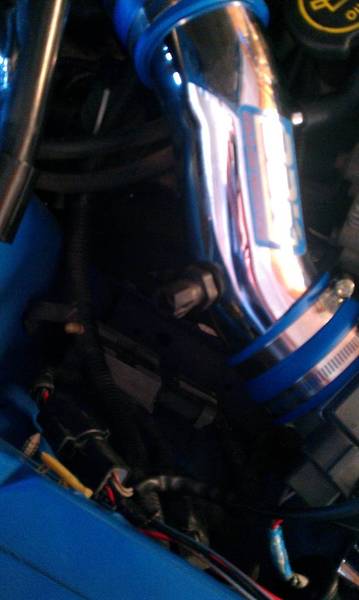

Install tubes into car and install the Air temp. sensor into tube:

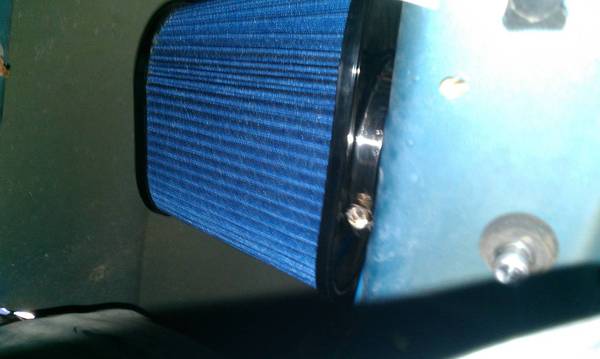

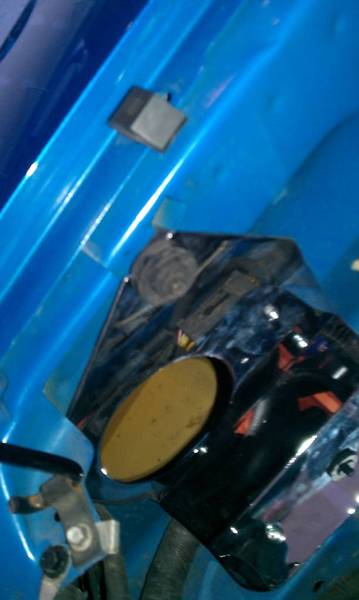

You have to attache the filter from underneath the car in the fender (this took a bit, kinda hard to get at):

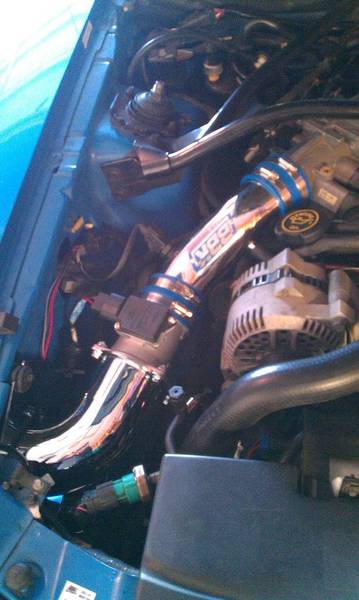

Re-install all electrical and hoses and here's the finished product:


Last edited:

slmann

Charter Member
13,472
232
Festus, Mo.
I jacked up the front of the car a little to make it easier to get under it to put the filter in. I also undid the splash guard in the wheel well to get a little more room.
