Hey Gang, remember me?

I was wondering if anyone had all the part numbers necessary to totally reseal a door and the door opening on a truck? 79 F100?

I picked up some NOS doors... and figured I should look into NOS seals.



[Skandocious]

Rockauto has weatherstripping for that application, manufacturer is Metro, part number LM110a:

https://www.rockauto.com/dbphp/prt,82,LM110A



[Psquare75]

Thanks, but I'm looking to go NOS. I have the 73-79 Ford Truck Catalog, but there are some terms there that are throwing me for a loop. A parts check online has shown they are available too...



[Mil1ion]



[bowtiehatr]

check out bronco graveyard or national parts depot. i have gotten factory parts in the factory box from both retailers.



[Mil1ion]

Reg and SC Door Opening Weatherstrip- D3TZ- 1020530-A

Door Weatherstrip -D8TZ-1020518-A

Door Run -D8TZ-1021536-A

Door Run -D3TZ-1021546 -A

These below are only Probable numbers for you
There are 3 possible numbers
I need actual YEAR of your truck and build number to narrow it done

Weatherstrip door glass at belt (Exterior)
D7TZ-1021452-A (RH)
D7TZ-1021453-A (LH)

Weatherstrip door glass at belt (Interior)

D3TZ-1021456-A (RH)
D3TZ-1021457-A (LH)



[MisouAngel]

It's in the first post, a 79.



[TexasNomad]

I know Jeffs Bronco Grave yard sells a super rubber kit I got two of them my both my 79s and it blows the LMC rubber away.



[Psquare75]

numbers for you
There are 3 possible numbers
I need actual YEAR of your truck and build number to narrow it done

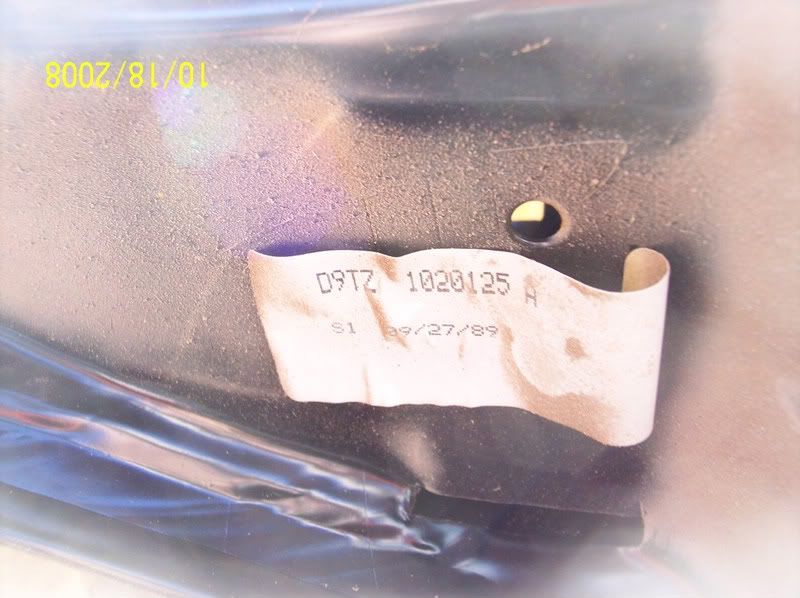

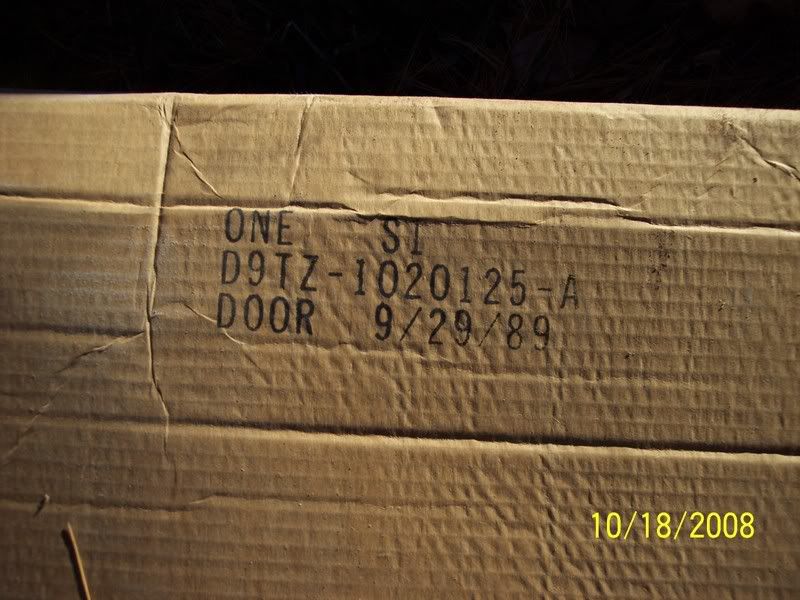

The door shells are NOS ford door shells.

My truck is a 1979 F100.

What is dependent.. the vent window seals? I couldn't ID the seals in that picture



[Mil1ion]

It's in the first post, a 79.

In the big picture That means nothing.

The Tag on the door shown in the post above is what counts.

The New number for ONE PART is

Weatherstrip door glass at belt (Interior)

D3TZ-1021456-B (RH)
D3TZ-1021457-B (LH)

Note these numbers are Original Numbers may have been superceeded by another number.



[bucks77ford]

I ordered all the weatherstripping and anti-rattle kit from Dennis Carpenter and everything fit great. The only thing I didn't get was the weatherstripping that goes around the top of the door which was an option I believe from the 78/79 F-series and Broncos.
